Ream - Receipts for the 21st century

This is the very first project I started back in 2019, and through it I've learnt to use React, React Native, Node.js, PCB design, and a range of accessory frameworks.

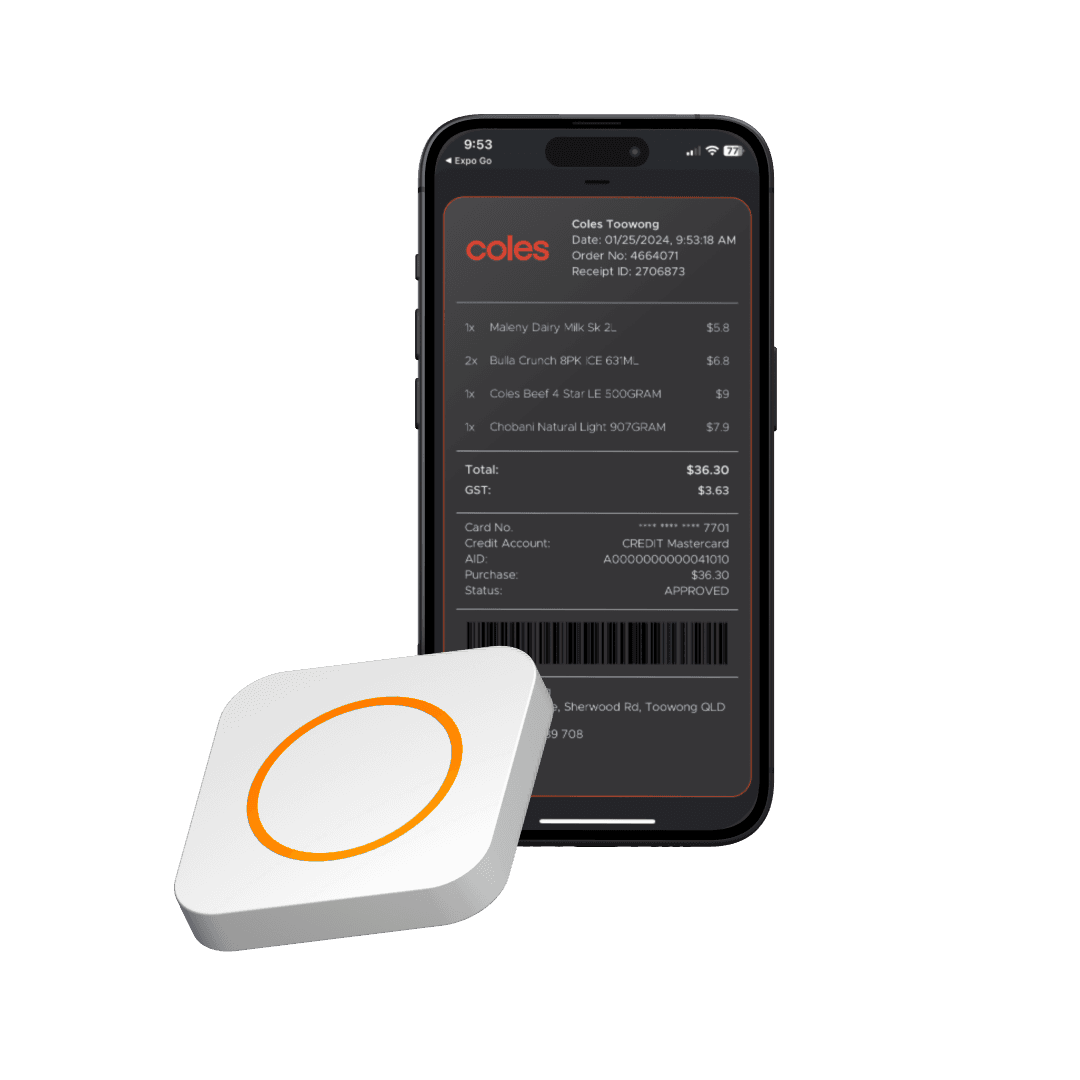

An example of the tile and a digital receipt.

The concept of Ream is simple, nobody likes paper receipts. While most people don't give receipts a second thought, I, like many others, was required to keep a record of all purchases made through work so they could be expensed back. Simple bank transaction statements were not enough. I found it astounding that in 2019, there was no direct interface between the Point of Sale (POS) systems and the payment processing providers for receipt data that wasn't just the sales total.

So I decided I would try and build a solution. My initial idea was some kind of middleware that would integrate with existing POS software and the customer's banking app to provide an interface for the receipt data mentioned above (I still think this is the best solution). However, the industry integrations required for a system like this seemed too ambitious for a first project.

My next solution was a physical device (think Square Card Reader) that would sit on a businesses counter top and emulate a standard bluetooth receipt printer. When a customer made a purchase, their receipt would be 'printed' to the device which I named the Ream Tile, which would then make a request to my backend, storing all necessary information, and returning with a URL. The customer then taps the Tile with an NFC enabled mobile phone, opens the URL, and can view/store the digital receipt.

The system I ended up building consists of 4 components:

  • The Main Web App - This would be the starting point for users, when they first tap a Ream Tile, the received URL would render their receipt in the browser as shown below. There is a simple interface where users can register an account, then store/retrieve their receipts.

  • The Mobile Application - Using deep linking, the same URL can instead open up the receipt in a native mobile application, which provides a more fluid experience for the user.

  • The Backend — All of the receipt data received from the POS system is sent from the Tile to the server via MQTT. A series of serverless AWS lambda functions then store/process the data before returning a URL to the Tile.

  • The Hardware — The Tile itself is something I'm quite proud of. It's completely built from scratch, and uses a custom PCB that uses an ESP32-C3 microcontroller at it's core. It has built in battery management/charging, and a custom housing that can be 3D printed (or injection moulded).

The main Ream Website

This was the first website I ever built, so you'll have to excuse some of the styling. I have refactored it over the years to use typescript, however much of the original code is fairly low-quality.

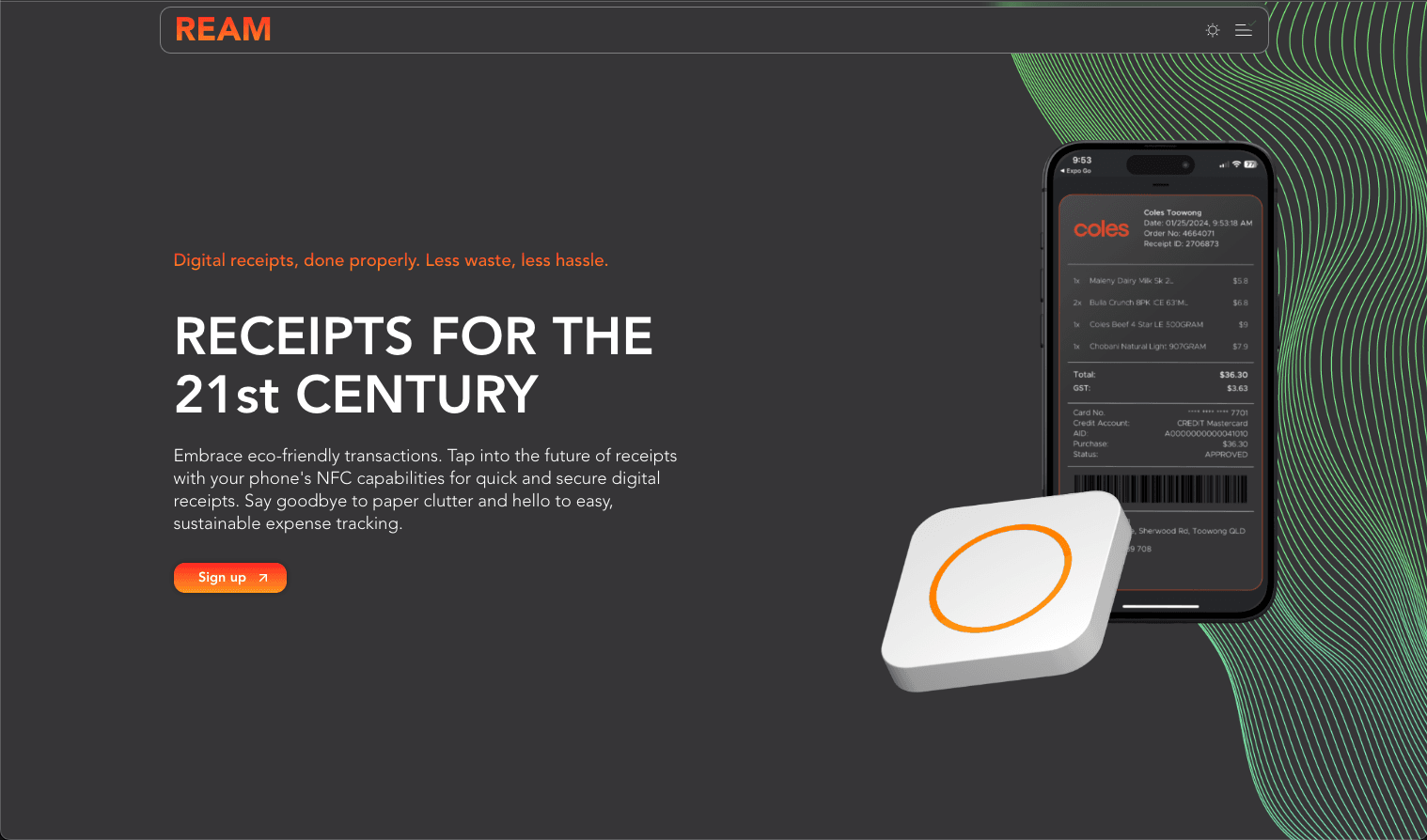

The Ream landing page.

The website is primarily designed to be viewed on mobile, as the majority of the customers would access it via their digital receipt in order to learn more about the system. I also built a simple notification system that would let takeaway venues notify their customers when their order was ready for collection by updating the receipt, which I called dynamic receipts. An example of a dynamic digital receipt can be seen below:

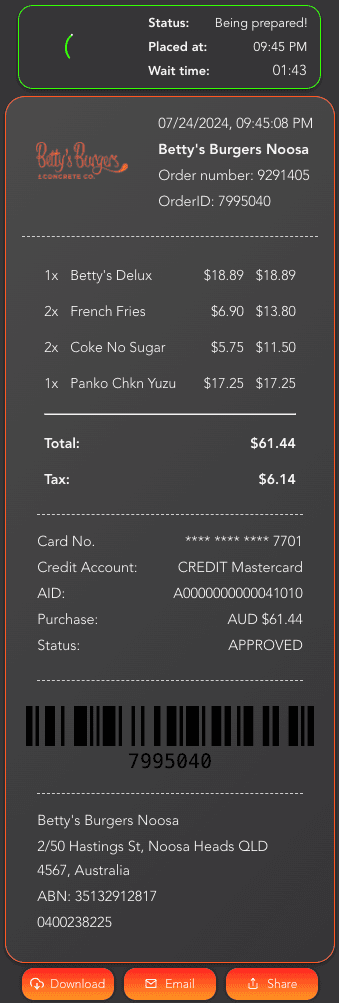

An example of a dynamic receipt.

More than a cursory view of the main website will tell you that it definitely needs a lot of work. However it does the job as a proof of concept.

You can view an example receipt here.

The Ream mobile app

Again this was the first mobile application I built with React Native, so a lot of the code is very average. It was quite a challenge to build as a beginner, and required the use of some complicated native libraries such as react-native-ble-plx and react-native-nfc-manager as well learning the ins and outs of React Navigation's deep linking schemes in order to fetch then render a digital receipt from a URL that would also work without the application installed.

The application supports login and registration through Email & Password, Google, Apple, and Facebook to make it as accessible as possible for users. When a customer that has the App installed taps their phone to a Ream Tile, they're redirected to the app where the receipt is automatically stored for future use.

The Ream Tile

The Tile is simultaneously the most difficult and most rewarding thing I've ever built. I designed then built every aspect of it from the ground up, including the housing, circuitry/PCB, and firmware. For testing and iteration purposes the housing is 3D printed out of ABS, but I designed it with injection moulding in mind. As a mechanical engineer this is the one part of the device that I was already familiar with.

At the time of it's construction there were no development boards available that had the features I needed, so I decided to build my own custom PCB. I just needed to learn some basic circuit & PCB design, source the correct components, have the boards manufactured, solder the ICs, and learn basic C++ and write some firmware - how hard can it be right?

Six months and around 50 expensive prototypes later I finally landed on a working design. The core of the system is the Dynamic NFC chip, which allows you to programmatically store and change the data it displays. This requires a correctly tuned PCB antenna so that standard mobile devices can correctly interpret the NFC signal. To control the IC I use an ESP32-C3 which has WiFi & BLE baked in. Then to power the whole system I have a LiPo battery and a charge/protection circuit with a USB-C port.

The Tile PCB front.

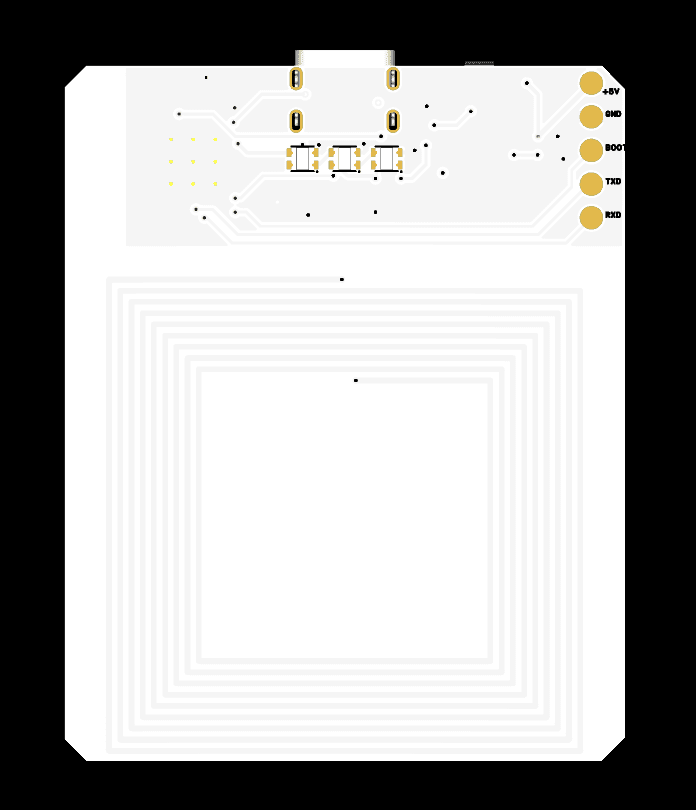

The Tile PCB back with PCB antenna.

After sorting through issue after issue figuring out the integration between the housing, PCB, and battery management, I needed to write the firmware for the device. I won't go into too much detail on this but it's written in C++ using the ESP-IDF framework specifically designed for Espressif microcontrollers.

The firmware includes support for both BLE and WiFi, and can present a receipt URL via either method. When using Bluetooth, the device provides a GATT Server service which a mobile application can send data to - a digital receipt URL in this case. When using WiFi, the device connects to the internet via a local network, then subscribes to a specific AWS IoT MQTT topic. When a digital receipt is created by the POS software via the Ream API, it pushes the resulting receipt URL out to the specified Tile.

After months of integration hell I finally had a fully working system. You can see an x-ray view of the Tile below, as well as some functioning prototypes.

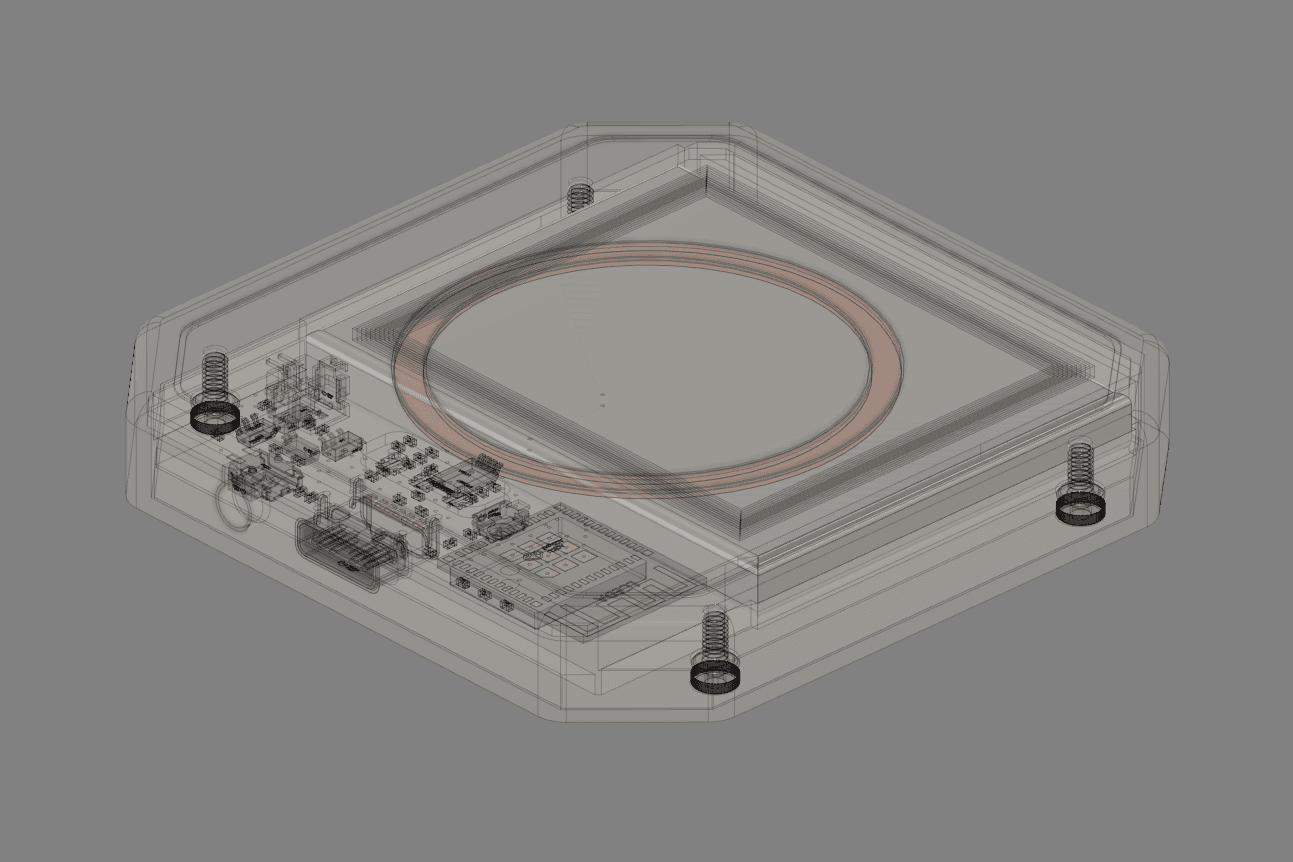

An x-ray view of the tile.

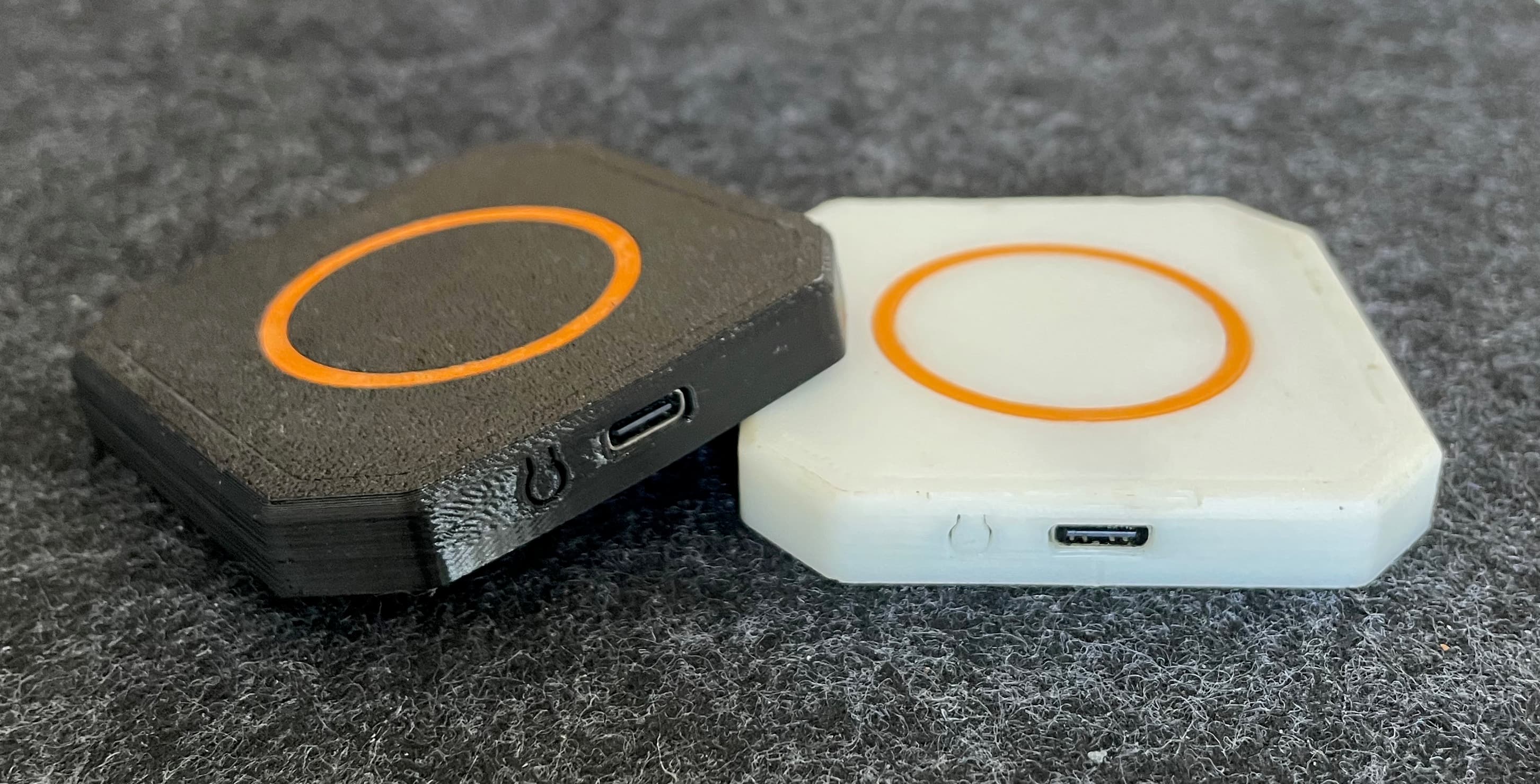

Some prototypes of the tile.

The Ream API

The Ream backend API is the start point of any digital receipt. Once an in-store order has been placed, the POS system will send a POST request to the Public API endpoint with the details of the receipt and their API Key. The server sanitizes, formats, then stores the receipt data securely within the database, then responds with a publicly available URL. If the store is using a Tile in it's WiFi configuration, then this URL is sent directly to the Tile via MQTT - otherwise it will be sent over BLE/USB.

The Ream backend API is written in Typescript using the Node.js Express framework. It's hosted on multiple AWS Lambda instances for simplicity and scalability using aws-serverless-express. It includes external endpoints that handle actions such as receipt generation, device (Ream Tile) registration, API Key requests etc. as well as dozens of internal endpoints.

import axios from 'axios';

const reamAPI = process.env.API_URL;
const apiKey = process.env.API_KEY;
const storeUID = process.env.STORE_UID
const tileUID = process.env.TILE_UID

//Example receipt data received from POS
const receiptData = {
    store: 'Bunnings Toowoomba North',
    uid: storeUID,
    date: '01/14/2024, 2:11:33 PM',
    orderNo: 7894561232,
    useBLE: true,
    completed: true,
    receiptId: '7515489',
    dynamicOrder: false,
    deviceID: tileUID,
    tax: 64.2,
    total: 642.00,
    order: [
        {
          name: 'Item 1',
          price: 2.00,
          quantity: 3
        },
        {
          name: 'Item 2',
          price: 6.78,
          quantity: 1
        },
        {
          name: 'Item 3',
          price: 2.28,
          quantity: 2
        }
      ],
    transactionDetails: {
        AID: 'A0000000000041010',
        account: 'CREDIT',
        approved: true,
        cardNo: '7701',
        cardType: 'Mastercard'
      }
    };

const createReceipt = async () => {
      try {
        const response = await axios.post(apiUrl, receiptData, {
          headers: {
            'Authorization': \`Bearer \${apiKey}\`,
            'Content-Type': 'application/json'
          }
        });
        console.log('Response:', response.data);
      } catch (error) {
        console.error('Error posting receipt:', error);
      }
    };

createReceipt();

The code above is obviously just a basic example for demonstration purposes. However, the response from the server should look something like this:

{
    "receiptID": "GFvuDNeWmzaw8CGO5VJ1",
    "deviceID": "REAM-TILE-E8:9F:6D:2F:99:04",
    "originURL": "https://ream-1.web.app/receipt/GFvuDNeWmzaw8CGO5VJ1",
    "useBLE": true,
    "url": "https://bit.ly/3A9MowZ",
    "acknowledged": true,
    "timeSent": 1748092017,
    "timeReceived": 1748092019,
    "metadata": {etc...}
}

You can view the resulting receipt here.
